Reverse Engineering and Dimensional Control
SERVICES
Reverse Engineering and Dimensional Control
Reverse Engineering: With Geomagic DX, we create CAD models from 3D scans faster, more accurately, and more reliably than any other reverse engineering software on the market.
​
Dimensional Inspection: With Geomagic® Control X™, we provide quality control and dimensional inspection services that allow you to capture and process data from 3D scanners and other devices. This enables us to measure, understand, and communicate inspection results, ensuring quality everywhere.
Rapid Prototyping
With seamlessly integrated tools into your existing workflow, you can quickly and easily create prototypes, test them, and gather valuable feedback on design solutions.
​
-
High level of detail
-
Versatility
-
Real-time meshing
​Redesign of parts and obtaining CAD models for discontinued parts

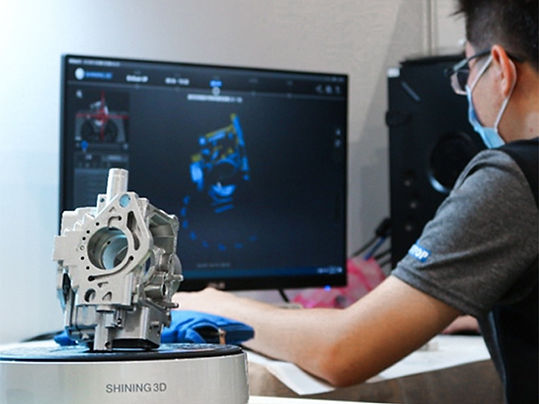

Reverse engineering is a process that involves measuring a physical object and reconstructing it into a 3D model to obtain a perfect reconstruction of the original design, in terms of simple analytic surfaces (planes, cylinders, etc.) and freeform surfaces (NURBS) to produce a new reference CAD model.
​Meshes for CAD workflows.
Capture with confidence and ease the data of existing pieces with the precision and accuracy that your business requires.
Manufacturing and 3D Printing
You can take advantage of the flexibility provided by 3D printing to quickly update and test reverse-engineered engineering designs.
Surface modeling
When we obtain a mesh from a scanned object with highly irregular surfaces, the Automatic Surface tool can make things easier for us.
This tool defines surfaces based on the desired approach, which can be:
​
-
Mechanical
-
Organic
